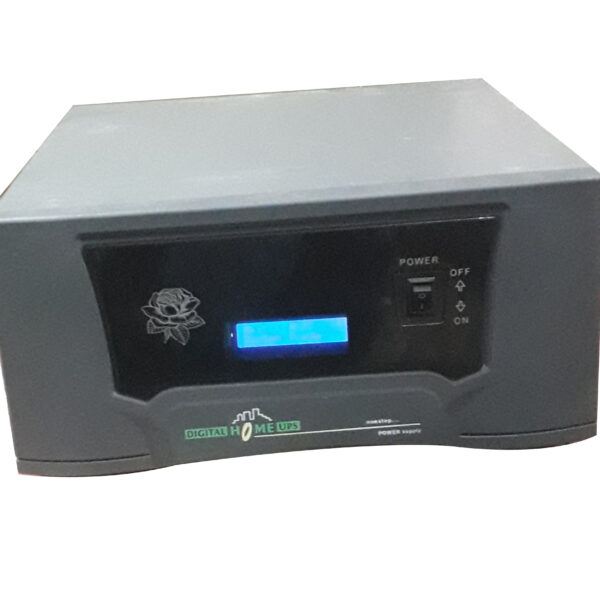

Sine wave lcd 850VA

Sine Wave Inverter Kit With LCD Display (850 Va/12 V)

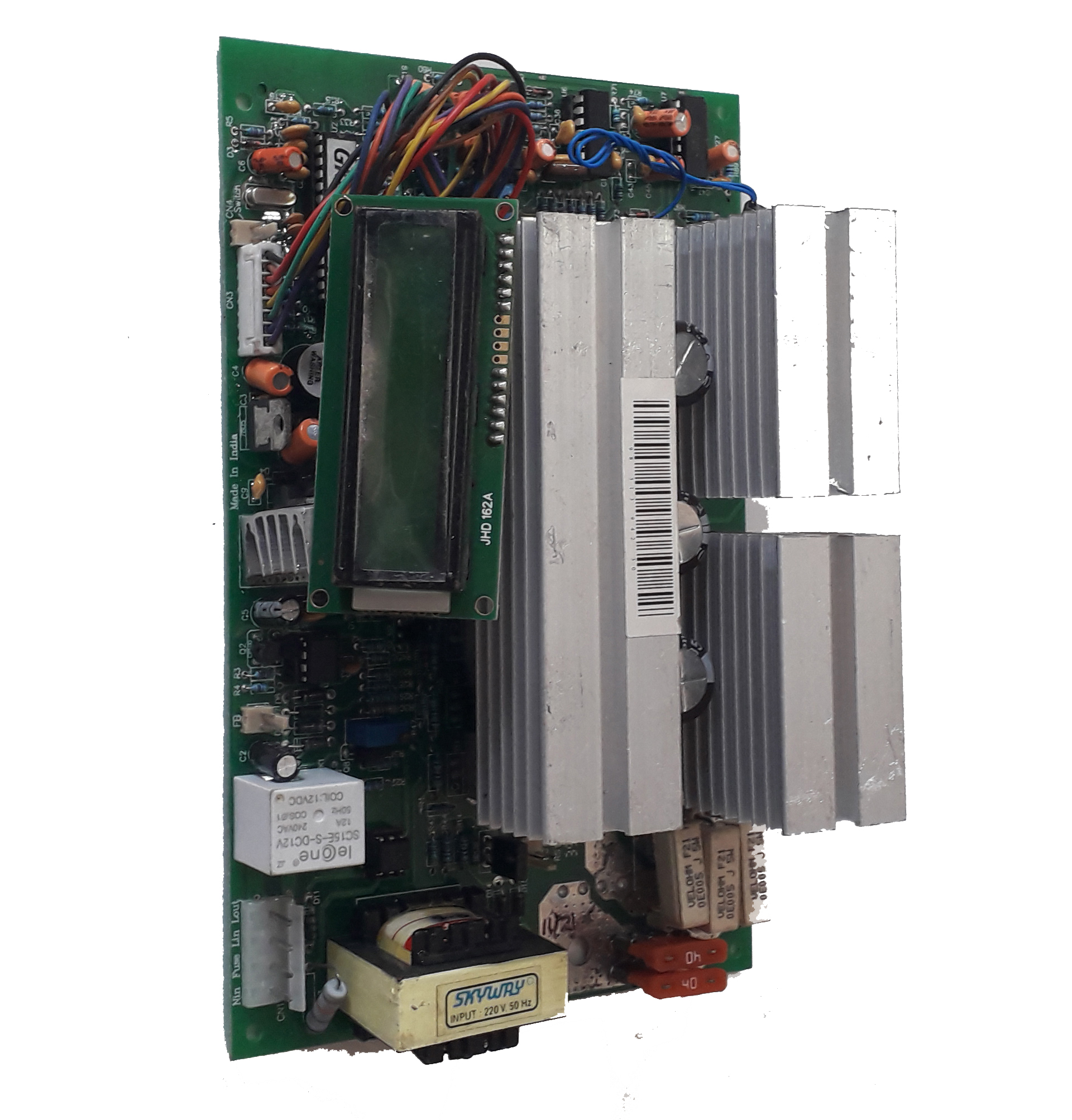

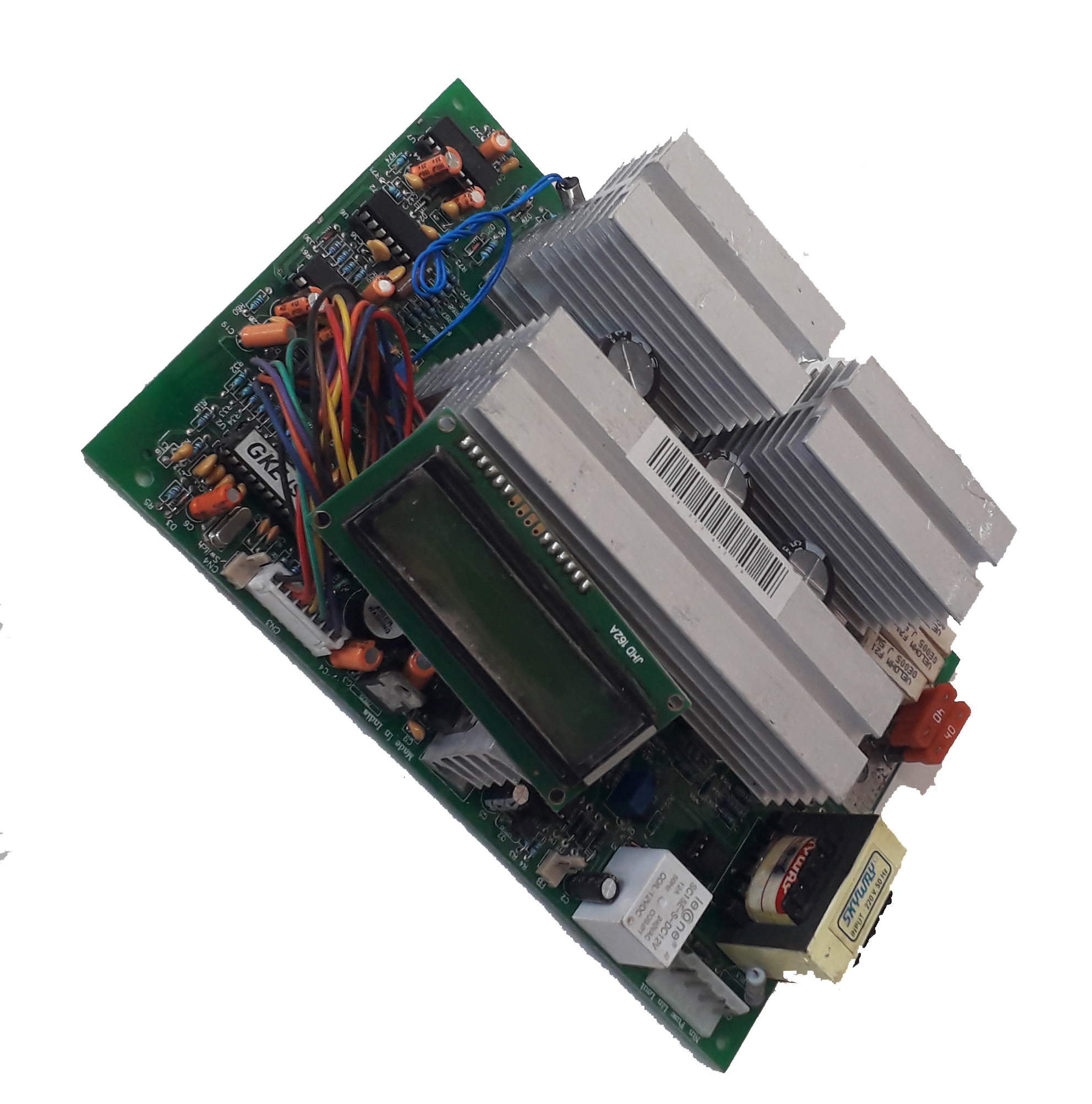

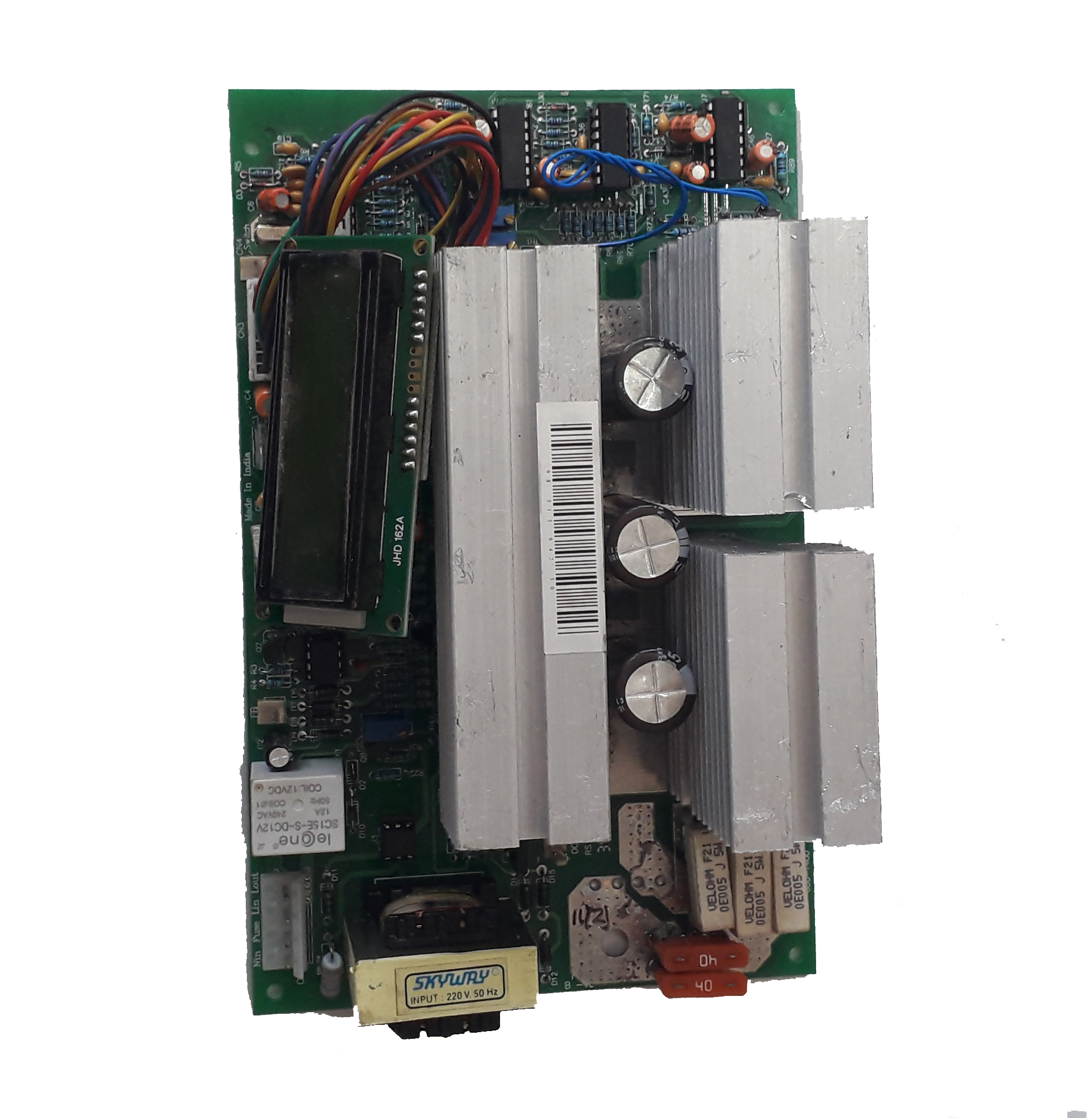

Sinewave Inverter kit with LCD display

•     Pic16f73 Microcontroller Programmed
  ·     Mosfet Technology
  ·     Battery- 1 Battery System
  ·     Input Dc Range- 10.5 V ~ 14.2 V
  ·     Efficiency (on Battery Mode) :> 84%
  ·     Protection Overload – 100%
  ·     Short Cicuit- 300%
  ·     Charging Current – 5 Amp To 12 Amp
  ·     High Frequency Charging
  ·     Power Factor Correction
  ·     Indication – Low Battery Shut Down With Beep
  – Overload Auto Reset
  – Charging Cut

Technical specification :
Mains AC Lower Voltage Limit
100V+/- 5V in Inverter Mode
180V+/- 5V in UPS Mode
Mains AC Higher Voltage Limit
280V+/- 10V in Inverter Mode
260V+/- 5V in UPS Mode
Output Voltage at No Load
220V +/-7V AC
Output Wave Form at No Load (for SINE WAVE)
Sine Wave
Home UPS Output Frequency
50+/-1.0Hz
Change over time Mains to UPS and vice versa
< 3 msec
